Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter Rope Diameter

Certificat
LA CHINE SHANGHAI SUNNY ELEVATOR CO.,LTD certifications
LA CHINE SHANGHAI SUNNY ELEVATOR CO.,LTD certifications
Examens de client
Le   de service est   à la portée de l'usager de   et le   d'honnêteté de   est   le   la plupart de   attrayant. C'est un plaisir de coopérer avec vous

—— Millay

Je suis en ligne une discussion en ligne

Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter Rope Diameter

Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter
Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter

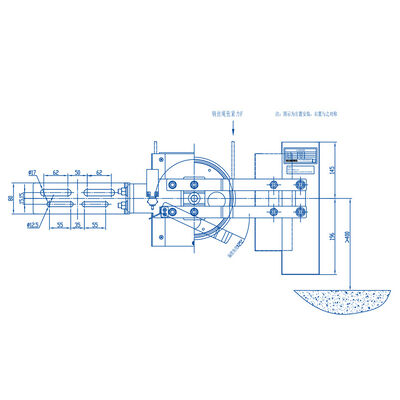

Image Grand :  Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter Rope Diameter

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: SUNNY
Certification: CE,ISO9001
Numéro de modèle: SN-ZJC
Conditions de paiement et expédition:
Quantité de commande min: 1 PIÈCES
Prix: $20~30
Détails d'emballage: Dans une boîte en carton
Délai de livraison: 7 ~ 15 jours
Conditions de paiement: LC, T/T, Western Union
Capacité d'approvisionnement: mois de 5000 PCs

Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter Rope Diameter

description de
Nom: Dispositif de tension d'ascenseur Modèle: Dispositif de tension d'ascenseur
utilisé: Pièces d'ascenseur Certification: FR
Durée de garantie: un an Taper: Dispositif de tension d'ascenseur
Produit: Dispositif de tension d'ascenseur Diamètre de pas de poulie: 200/240 mm
Diamètre de corde métallique: 6/6,3mm Hauteur du sol: H≤150





Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter Rope Diameter

Parameter table

Pulley pitch diameter(mm)

Wire rope diameter

Rope diameter

(mm)

Tension force

Tension

force

(N)

Building height(reference)

Installation

method

200/240 6/6.3 140N H≤60m Left/Right
180N 60
240N 90
300N 120



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 0



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 1



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 2



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 3



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
