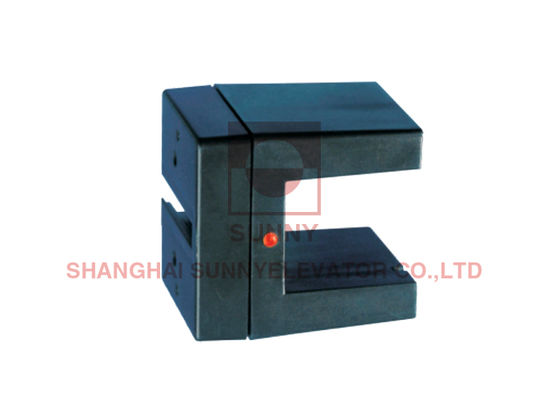

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

Certificat
LA CHINE SHANGHAI SUNNY ELEVATOR CO.,LTD certifications
LA CHINE SHANGHAI SUNNY ELEVATOR CO.,LTD certifications
Examens de client
Le   de service est   à la portée de l'usager de   et le   d'honnêteté de   est   le   la plupart de   attrayant. C'est un plaisir de coopérer avec vous

—— Millay

Je suis en ligne une discussion en ligne

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts
CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

Image Grand :  CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

Détails sur le produit:
Lieu d'origine: CHINE
Nom de marque: SUNNY
Certification: CE,ISO9001
Numéro de modèle: ET126NS2P
Conditions de paiement et expédition:
Quantité de commande min: 1 pcs
Prix: $3~6
Détails d'emballage: Boîte en bois
Délai de livraison: 7-15 jours de travail
Conditions de paiement: Western Union, T/T, L/C, Paypal
Capacité d'approvisionnement: mois de 1000 PCs

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

description de
Nom: Capteur de créneaux de nivellement de l'ascenseur Taper: Pièces d'ascenseur
Emballage: emballage standard Tension: 10...30 VDC
Produit: Capteur de créneaux de nivellement de l'ascenseur Modèle: Capteur de créneaux de nivellement de l'ascenseur
Sortir: PNP ou NPN Courant maximal de charge: ≤200mA
Temps de réponse: ≤1ms Limites de la température: -20 ~ + 70 ° ℃



CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts



Feature Description

High-speed response type

With a repeatability accuracy of up to 0.5mm, the positioning is more precise

Infrared light above 10000% is on standby, dust-proof, smoke-proof and steam-proof

It is equipped with built-in output short-circuit protection, surge protection and overload protection circuits

Multi-functional output (NPN/PNP/NO/NC

Protection grade IP65(IEC)



Model ET126NS2P
Power supply

10...30VDC

Riple

<10%

Detected object Φ2.0  Above metal objects
Sensitivity adjustment fixed
Emission

Infrared(880nm)

Output

PNP or NPN

Max. Load Current

≤200mA

No Load Current

15mA or Less

Voltage Drop(Sensor On)

<2.5V

Response Time

≤1ms

Short Circuit Protection

Yes

Electric Protections Yes
Temperature Limits

-20 ~+70°℃

Storage temperature and humidity

-40 ~ +80℃ 95% RH

Light Immunity

>100,000Lux

Protection Degree

En60529 IP65

EMC

EN 12015, EN 12016

Certification CE
Connection Type

PVC Cable



CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts 0

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts 1



CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts 2

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
